RBAC

Overview of Users

A User has a username and password and can access the Spektra cluster.

The admin user (the Service Provider admin created during Domain creation) is a built-in local user provisioned at the time of cluster creation.

You can onboard a user or a group of users to a Diamanti Spektra cluster.

You can either create the following types of users:

• Local users - Create local users when there are a handful of them who access the Diamanti cluster directly. There is no dependency on a remote identity provider.

• Remote users - Create remote users to manage a large number of users who need to access the Diamanti cluster. The remote identity provider handles the user management and authentication. Diamanti supports LDAP and Active Directory (AD) for remote authentica­tion.

You (the tenant admin) create a group and associate the LDAP group with this Diamanti group. All users in the LDAP group obtain the same privileges as that of the users in the Diamanti group.

Key Terms

Term	Description
Authentication	Finds and validates a user during cluster login. User authentication can either be local or through remote authentication providers. Dia­manti supports LDAP and Active Directory-based identity provid­ers.
Authorization	Validates user privileges against a set of Diamanti resources. While authentication validates a user’s credentials, authorization sets the permissions to access cluster resources.
Group	Implements authorization to Diamanti resources. A user admin cre­ates a local group and associates it with a set of permissions.
Role	Specifies the access rights to a resource (namespace) or to the clus­ter. A user admin associates a set of roles to a local group to define the actions the group users can perform on the resource or cluster. The roles in Spektra are: Service provider Tenant admin Project admin Project member Project viewer

Managing Users as a Service Provider

1. Log in as the Service Provider.



2. Select Settings from left panel and then select Users.



   or

   Select my profile icon in the top left, and select Manage Users.



3. Select New User to add a new user.

4. All users created by the Service Provider get Service Provider permissions by default. However, the Service Provider can assign or revoke the Service Provider roles from other users in the domain.



Creating a Local User as a Service Provider

1. Log in as the Service Provider.



2. Select Settings from left panel and then select Users.



   or

   Select my profile icon in the top left, and select Manage Users.



3. Select New User.



4. In the New User diaglog, select Password to authenticate the local user.

5. Enter the following:

   • User name of the local user

   • Password of the local user. The password should be a minimum of eight characters with at least one uppercase, lowercase, special character, and number. or Select Auto-generate password to automatically generate a password to authenticate the local user.

     Note

     You can change the password, after creating a user

   • Confirm the password.

6. Select Save to create the new local user.

7. After the local user is created successfully, the user name appears in the list of users on the Users page.



Getting User Information

1. Mouse hover on the user.

2. Select Ellipsis.

3. Select View Usage, View membership, Reset password, or Delete the user.



Creating an Identity Provider as a Service Provider

1. Select Settings from left panel and then select Identity Provider.



2. Select New Identity Provider.

3. Enter the following to create a New Identity Provider.



• Name of the LDAP or AD server.

• IP address of the remote server.

• Optionally, enter the port number through which you connect to the remote server.

• The Base DN (Distinguished Name) is the point from where a server searches for users.

  For example, an LDAP search for the user admin is done by the server starting at the Base DN (dc=example,dc=com).

  When the user is found, the full DN (cn=admin,dc=example,dc=com) is used to bind with the sup­plied password.

  The LDAP server authenticates the user with the password.

  Your application uses the DN to bind to the LDAP server during application startup, before any user is authenticated.

  Enter a full DN such as cn=admin,dc=example,dc=com.

• With LDAP syntax, the Bind DN, or the user authenticating to the LDAP Directory, is derived by using LDAP syntax and going up the tree starting at the user component.

  For example, the user user1 is contained in the Users container, under the example.com domain.

  The corresponding Bind DN is as follows: CN=user1,CN=Users,DC=example,DC=com.

• Bind Password that has a minimum of eight characters with at least one uppercase, lowercase, and special character.

• Confirm Bind password.

Advanced Settings is optional

Under Advanced Settings, specify the following:

• User Filter : Optionally, specify a user filter. This is the LDAP query used to identify the unique user record. It restricts the number of users who can access the application.

• User Name Attribute: The system automatically populates this value. The user name must be the LDAP DN of the user, for example CN=user1,CN=Users,DC=example,DC=com.

• User Member Attribute: Optionally, specify a user member attribute. This is a list of comma-separated LDAP attributes on a user object storing the groups that the user is a member of.

• Group Filter: Optionally, specify the LDAP group filter. This restricts the number of groups that can access the application.

• Optionally, specify a Group Name Attribute of the LDAP server. The group name is not case sensi­tive.

• The system automatically populates this value. This is a list of comma-separated Group Member Attributes on a group object storing the user members of the group.

1. Select Save to create the identity provider.

The new identity provider that you create appears in the list on the Access Management page.

Creating a Remote User as a service provider

1. Select Settings from left panel and then select Users.



   or

   Select my profile icon in the top left, and select Manage Users.



2. Select New User.



3. Select LDAP as the Authentication Method to create a remote user.

   Note

   Make sure at least one LDAP should be created in which user has to create.

4. Select the remote identity provider from the list that you created using the steps described above.

5. Enter the following: a Domain name.

   • Domain name

   • LDAP remote User Name

   • Optionally, enter the Full Name of the user

   • Optionally, enter the user’s Email Address

6. Select Save to create the remote user.

After the remote user is created successfully and the user name appears in the list of users on the Users page.

Creating Custom User Groups as a Service Provider

1. Select Settings from left panel and then select User Groups.



2. Select User Group to display the user group creation page.

3. Select New User Group.

4. Select the membership type as Custom to add local or remote users to the group.



5. Enter the Group Name and select the Users to associate with the group.

6. Select Save to create the group.

The User Group appears in the list of User Groups on the User Group page.

• Hover the mouse on to the group and click ellipses in the user group section to display a drop-down to View Members, View Usage, and Delete the User Group.



• Select View Members to display the Membership page.



• Hover the mouse to the group and click ellipses in the user group section to display a drop-down that lets you remove the member from the group.

Creating Federated User Groups as a Service Provider

1. Select Settings from left panel and then select User Groups.



2. Select New User Group.

3. Select the membership type as Federated for remote users.



4. Enter the Group name and select the Remote Identity Provider from the list.

5. Select Save to create the group.

   • The User Group you created appears in the list of User Groups on the User Groups page.

   • Hover the mouse on to the group and click on three dots in the user group section to display a drop-down to View Members, View Usage, and Delete the User Group.



   • Select View Usage to display the Usage page.



   • Hover the mouse on the group to delete the group

Managing Users as the Tenant Admin

Create a Local User as a Tenant Administrator

1. Log in as the tenant admin.



2. Select Settings from left panel and then select User.

   or

   Select my profile icon in the top left, and select Manage Users.



3. Select New User.

4. In the New User diaglog, select Password to authenticate the local user.

5. Enter the following:

   • User name of the local user

   • Password of the local user. The password should be a minimum of eight characters with at least one uppercase, lowercase, special character, and number.

     or

     Select Auto-generate password to automatically generate a password to authenticate the local user.

     Note

     You can change the password, after creating a user.

   • Confirm the password.

6. Select Save to create the new local user.

7. The local user is created successfully, and the user name appears in the list of users on the tenant admin Users page.



8. Only the users under the tenancy namespace are visible under Users in the tenant admin Access Management page. You cannot see the users that the Service Provider created in the domain namespace. They are mutually exclusive.

9. The tenant admin can assign other people as tenant admins.



10. The tenant admin can also revoke another tenant admin’s privilege.



Creating a Remote User as a Tenant Administrator

1. Select Settings from left panel and then select User.

   or

   Select my profile icon in the top left, and select Manage Users.



2. Select New User.

3. In the New User diaglog, select LDAP to create a remote user.

   Note

   Make sure at least one LDAP should be created in which user has to create.

4. Select the remote Identity Provider from the list that you created using the steps described above.

5. Enter the following: a Domain name.

   • Domain name

   • LDAP remote User Name

   • Optionally, enter the Full Name of the user

   • Optionally, enter the user’s Email Address

6. Select Save to create the remote user.

After the remote user is created successfully and the user name appears in the list of users on the Users page.

Creating User Groups as a Tenant Administrator

User Groups enable you to create a set of Users and group them so that you can assign parameters to many users, projects, domains, and tenants.

1. Select Settings from left panel and then select User Groups.

2. Select User Group to display the user group creation page.

3. Select New User Group.

4. Select the membership type as Custom to add local or remote users to the group.



5. Enter the Group Name and select the Users to associate with the group.

6. Select Save to create the group.

The User Group that you created appears in the list of User Groups on the Tenant Settings page.

• Mouse hover on to the group and Click on three dots to display a drop-down to View Members, View Usage, and Delete the User Group.



• Select View Members to display the Membership page.



• Mouse hover on to the group and Click on three dots to display a drop-down, that lets you remove the member from the group.



Creating Federated User Groups as a Tenant Administrtor

1. Select Settings from left panel and then select User Groups.



2. Select New User Group.

3. Select the membership type as Federated for remote users.



4. Enter the Group name and select the Remote Identity Provider from the list.

5. Select Save to create the group.

   • The User Group you created appears in the list of User Groups on the Access Management page.

   • Hover the mouse on to the group and select ellipses in the user group section to display a drop-down to View Members, View Usage, Make Tenant admin and Delete.



   • Select View Usage to display the Usage page.



   • Hover the mouse on to the group to delete the group.

Note

To view the users, navigate to the My Profile icon in the top left and select Manage Users This option is available to all users including Service Provider, Tenant Administrator, Project Administrator, Project Manager, and Project Viewer.

Project Overview

Projects are buckets within Tenants that contain Applications. They act as an authorization target and allow admins to set policies around sets of applications to govern resource usage, cluster access, and security levels.

Projects can be within or across clusters owned by a Tenant. Projects combine multiple Kubernetes namespaces together. Allocating resources and consuming resources or configuring RBAC and application management happens in a Project.

When you create a new project, you can add a project admin, project member, and a project viewer to the project.

As a TA, Creating a New Project

To create a Project follow below steps:

1. Log into Spektra as a tenant admin.

2. Click Projects to display the projects page.

3. Click New Project to display the project creation page.



4. Give the project a name. The project name can have a minimum of three and a maximum of 50 char­acters. You can use only lowercase alphanumeric characters (a-z or 0-9) or a dash (-). It should start and end with an alphanumeric character.

Setup Access to the user

Under Setup Access, select a user from the drop-down and assign the user as the project admin, project member, or project viewer.

1. Click On the project

2. Click on Access tab.

3. Click on ‘Add memeber’ button.

4. Select the role as project member to display the drop-down.

5. Click on Group By: USER in the drop-down.

6. Select a user and click Add Project Member to add the user as a project member. You can also add the user as a project admin or a project viewer by following same steps.

Add Clusters to project

1. Under Select Clusters dropdown, select at least one cluster.

2. Dropdown should contain all available tenant clusters list.

3. The project can span across multiple clusters. Select at least one cluster.

4. Under Project Resource Reservations:

• Click No Limit to assign as many resources available in the clusters.



• Click Cluster Reservation to assign a percentage of the total cluster capacity to this project.



• Click Custom and manually assign cluster capacity values to the project. You can assign maximum thresholds of CPU and memory for a given project.



Click Create Project. The new project that you created appears in the Projects page.

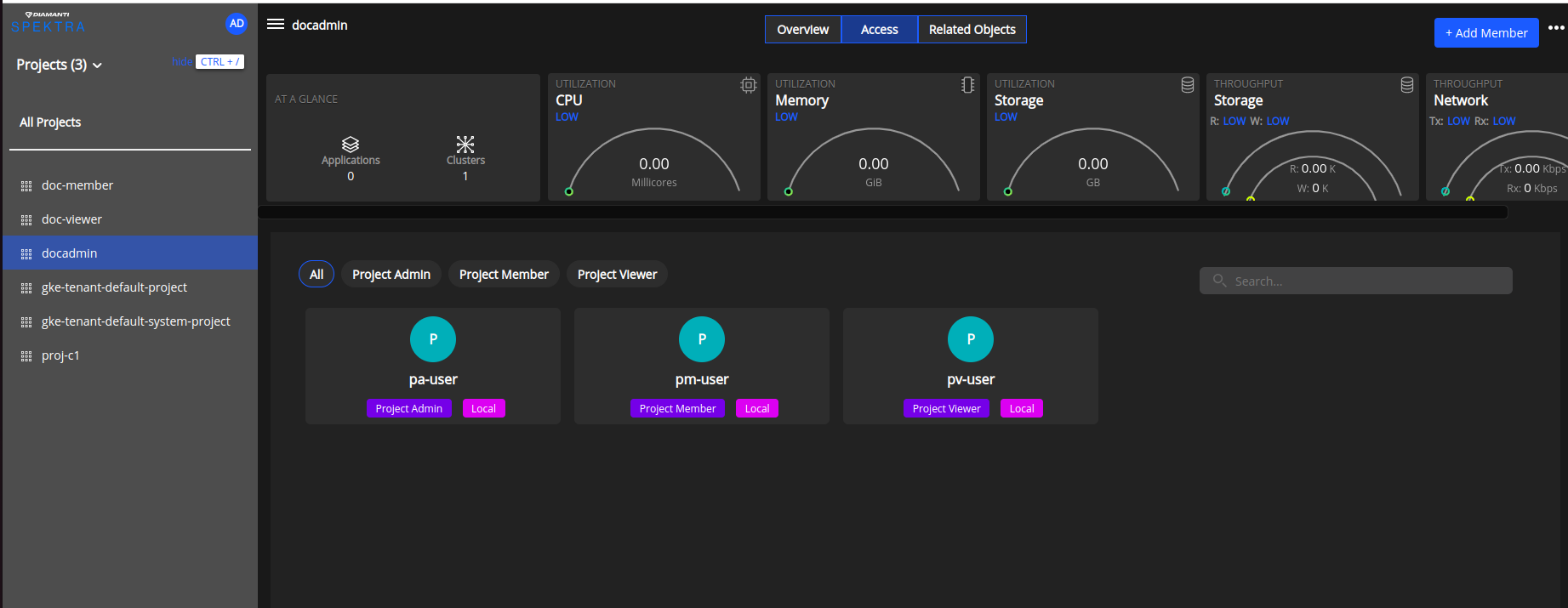

What the Tenant Admin can Access

1. Go to the Projects page.

2. Click on the project.

3. Click on to the Access tab to view the projects that you (tenant admin) can access.



Note

A project member and a project viewer cannot view the ‘Access’ tab.

Tenant Admin Observability

The tenant admin can

• View CPU, memory, storage, and network for the cluster, tenant, projects, and applications within the tenant.

• View events (related to Kubernetes objects) per cluster.



The tenant admin can also view the CPU, Memory, and Storage Network metrics for each node.

Adding a User as a Project Admin

1. Go to the Projects page and click the Access tab to display the Access page.

2. Click Add Member at the top right of the page to display the Add Member menu.



3. Select project admin to display the drop-down.

4. Select a user and click on ‘Add Project Admin’ to add the user as a project admin.

Adding a user as Project Member

1. Go to the Projects page, click on project and click the Access tab to display the Access page.



2. Click Add Member at the top right of the page to display the Add Member menu.

3. Select Project Member to display the drop-down.

4. Select a user and click Add Project Member to add the user as a project member.

Adding a user as Project Viewer

1. Go to the Projects page, click Users, and click the Access tab to display the Access page.

2. Click Add Member at the top right of the page to display the Add Member menu.



3. Click Add Member at the top right of the page to display the Add Member menu.

4. Select Project Viewer to display the drop-down.

5. Select a user and click Add Project Viewer to add the user as a project viewer.

Viewing the Project Users

Go to the Projects page, click project, and click the Access tab to display the Access page.

The Access page lists the project admins, project members, and project viewers.

Adding a Group to project

Note

Create a Federated or custom group before giving access to it

1. Go to the Projects page, click Users, and click the Access tab to display the Access page.

2. Click Add Member at the top right of the page to display the Add Member menu.



3. Click Group By to display a drop-down.

4. Select a group from the list.

5. Click Add Project Viewer to add users in the group as project viewers.

6. Go to the Projects page, click Users, and click the Access tab to display the Access page.



The users in the new group are added as project viewers.

What the Project Admin can Access

1. As a TA, create a project

2. Give a user to project admin permission

3. Log in as the project admin.



4. Click Projects to view the list of projects that you can access.



You can view only the projects that are permitted to the user. User cannot access/view other projects until we can give access to him.

Click Clusters to display the list of clusters that the user (project admin) can access.

Click Projects to display the projects page.

Click on to the Access tab from project to view the list of Project Users.

Click settings tab to display the list of users.

The project admin can view all the users in the project (the project member, Local project viewer, and the Remote project viewer).

However, the project admin cannot view details of the tenant admin.

The project admin can add users who do not have a tenant admin policy specified.

Similarly, the project admin can add Groups that are not created by the tenant admin.

Project admin can view CPU, memory, storage, and network for the projects and installation within the associated project.

What the Project Member can Access

1. As a TA, create a project

2. Give a user to project memebr permission

3. Log in as a project member.



4. Select Projects to display the list of projects.

5. The project member can see all the users that are a part of the tenant. However, the project mem­ber cannot perform any user management. But, the project member can install the already created applications.

Project member can view CPU, memory, storage, and network for the projects and installation within the associated project.

What the Project Viewer can Access

1. As a TA, create a project

2. Give a user to project viewer permission

3. Log in as a project viewer, you’ll find that the project viewer cannot perform any user management.



4. The project member can install an application, but the project viewer cannot.

5. Click Projects to view the list of projects that you can access.

Permission for Project Viewer User:

• Can see all the users who are a part of the tenant from settings tab.

• Can view only the projects that user are associated with.

• Cannot access other projects.

• Can view the catalog, work-template and installed applications (within assigned project).

• Cannot install any application.

Project viewer can view CPU, memory, storage, and network for the projects and installation within the associated project.
